Art.No ST20280PROD3

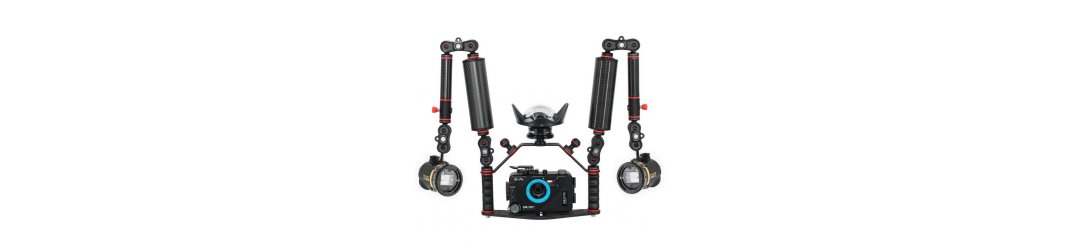

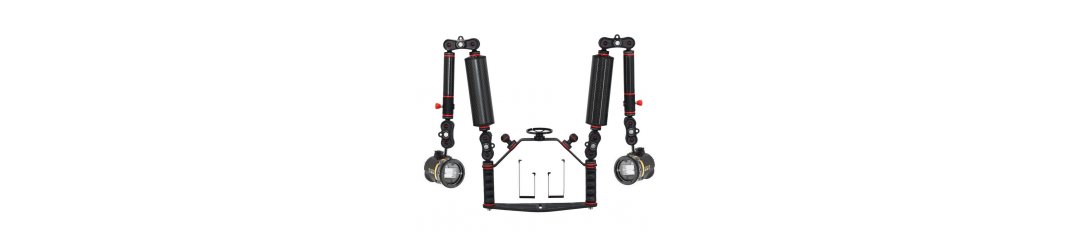

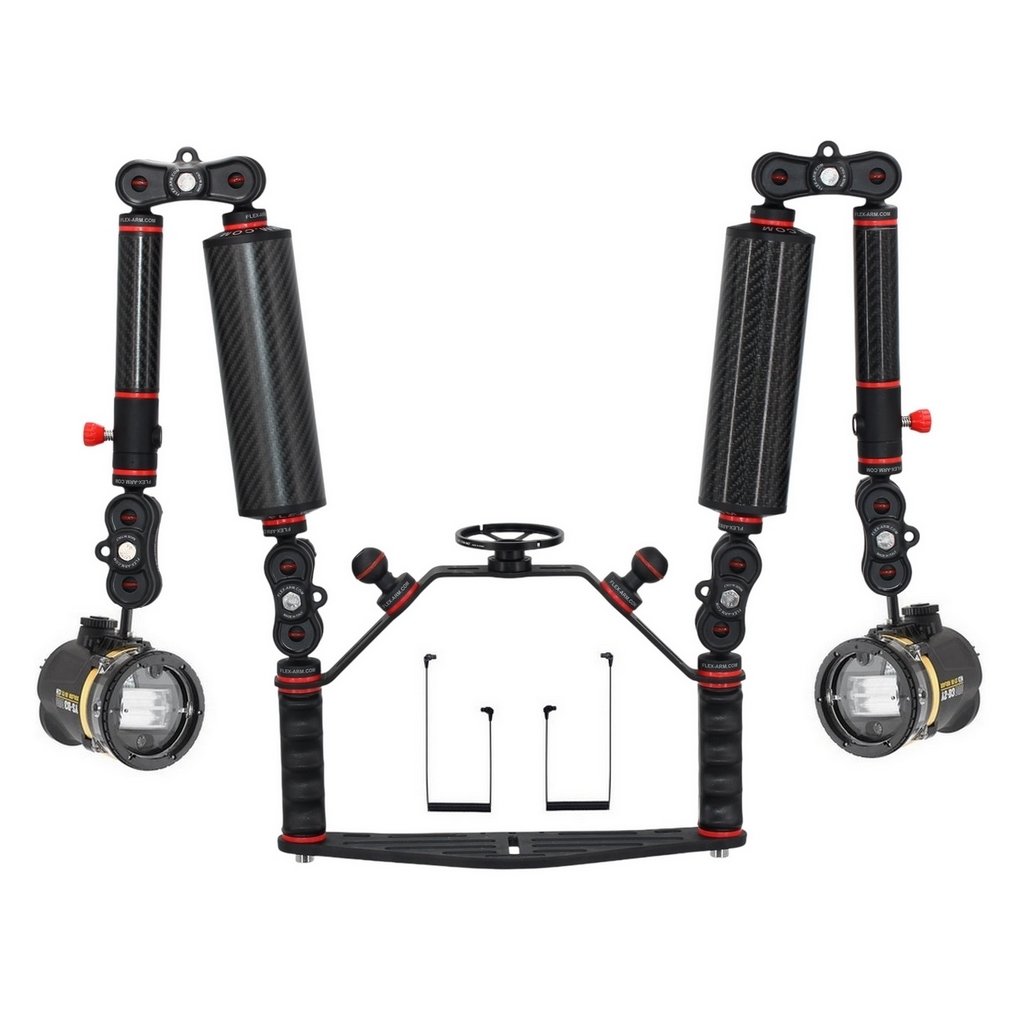

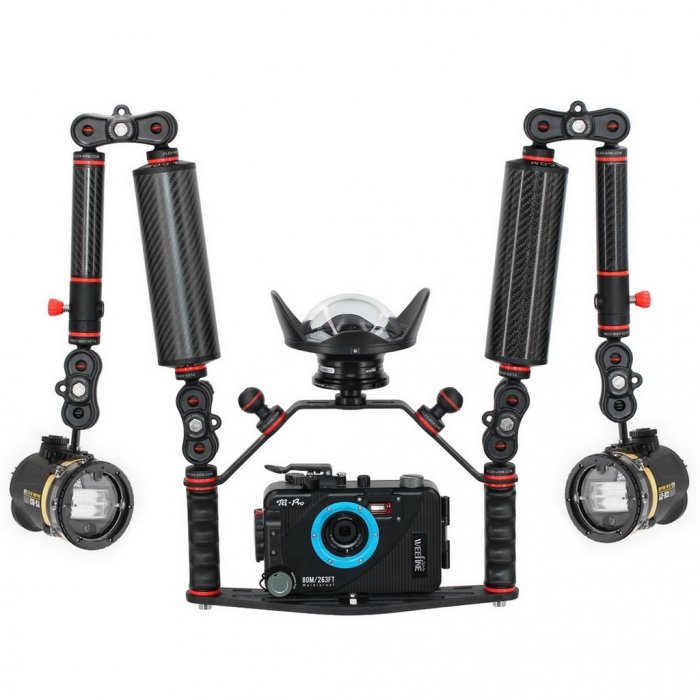

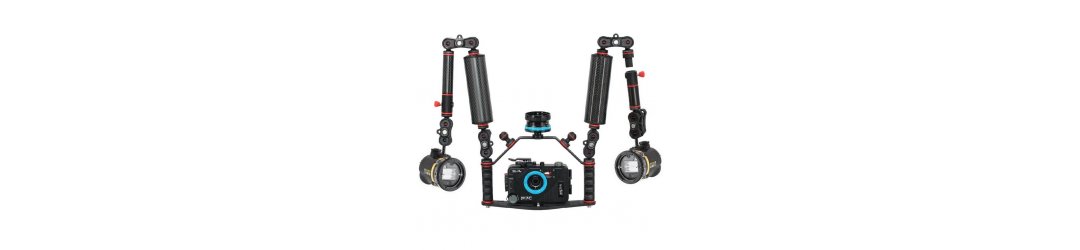

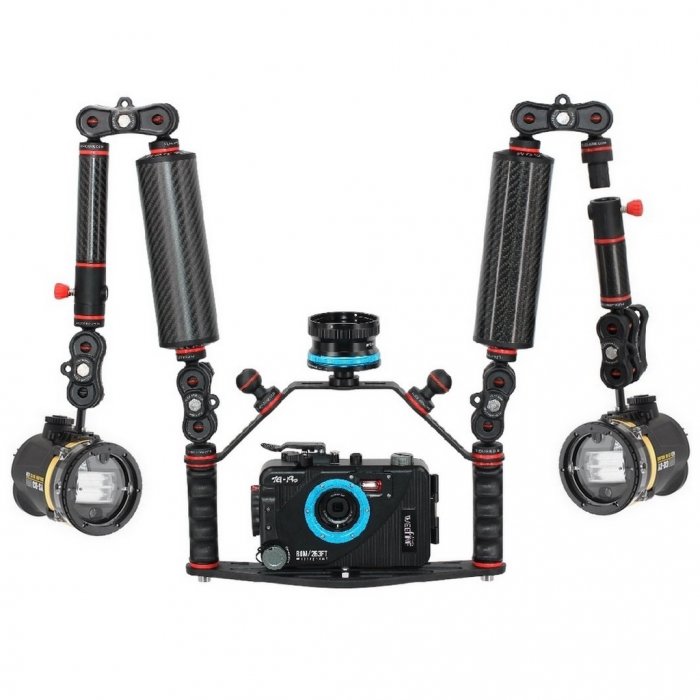

Platine pour Caisson Photo Sous-Marine Kit Crossbar avec Support de Lentille M67 Bras Flotteur de Carbone PRO - Sea and Sea YS-D3 Duo

Platine universelle avec poignée à boule 25 mm

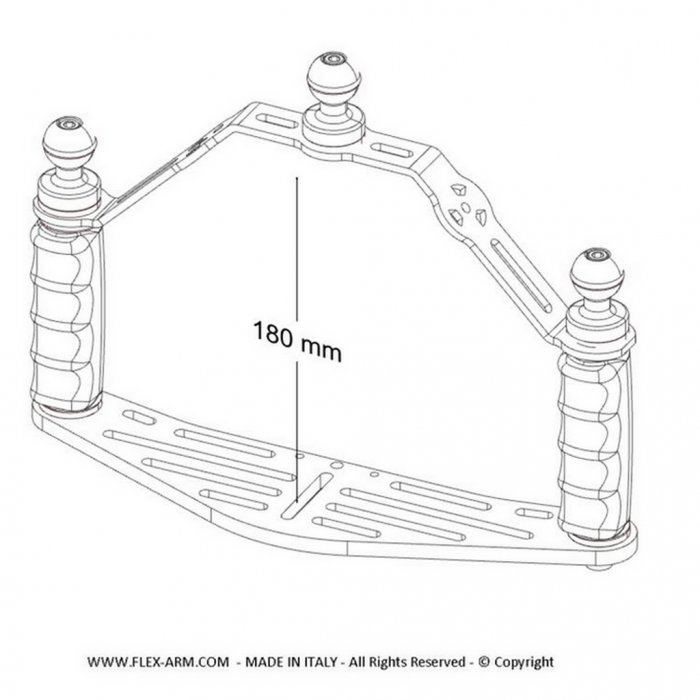

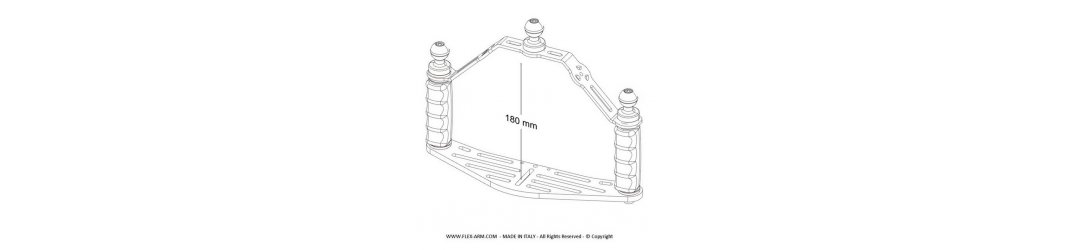

Crossbar avec Set Support de Lentille M67 et 2 Boule 25 mm pour Platines Sous-Marine 320 mm

Pince de serrage pour boules 25 mm

Bras flotteur fibre de carbone 60 mm avec rotule 25 mm long 25 cm flottabilité 360 g

Bras en Fibre de Carbone à Dégagement Rapide Double Boule 25 mm Long 24 cm

Terminaison ys avec boule 25 mm

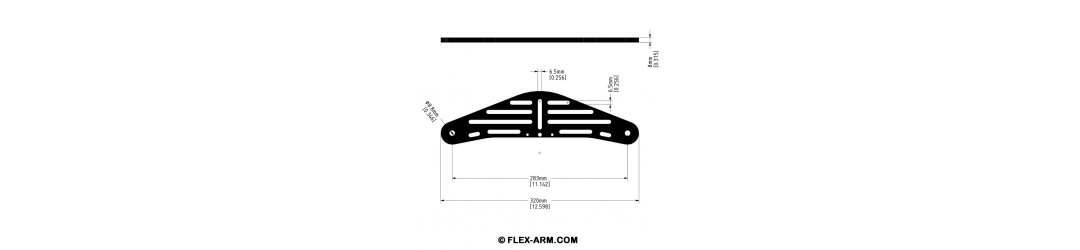

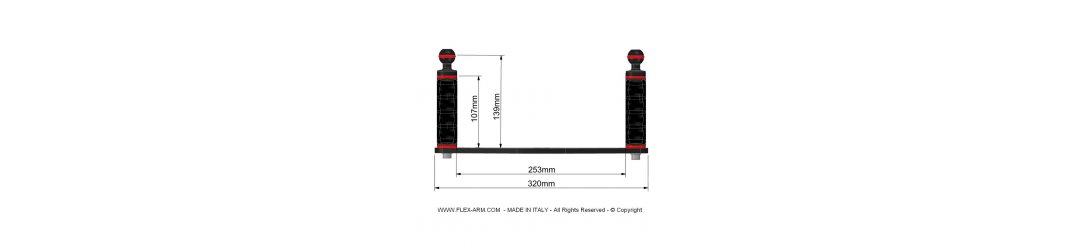

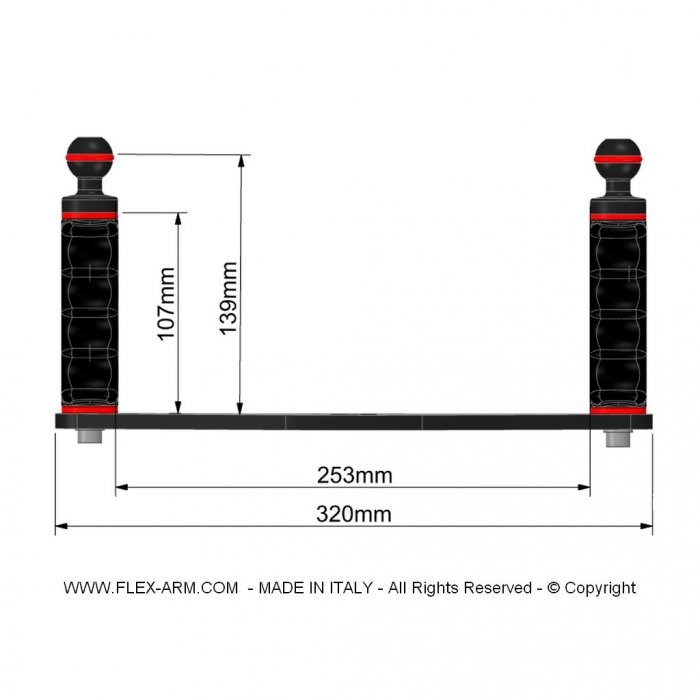

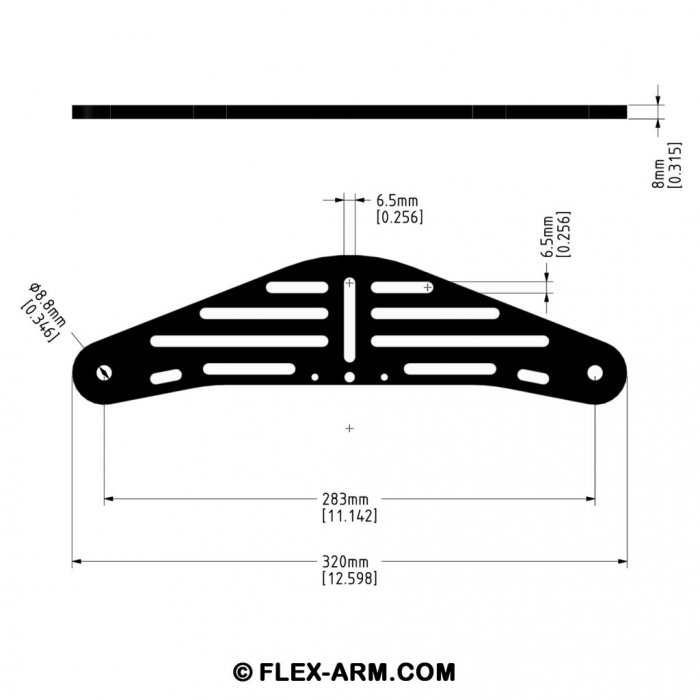

Dimensions: 320 mm x 75 x 8 mm

Bouton filetage 1/4 pour caméra

Matériel: technopolymère

Composition

n.2 Sea and Sea  Flash YS-D3 Duo

n.2 Câble fibre optique M /2 connecteurs universels Art.no 50128

n.1 Platine avec 2 poignées à boule 25 mm 320 x 75 x 8 mm Art.No ST202.04

n.1 Crossbar avec Set Support de Lentille M67 et 2 Boule 25 mm pour Platines Sous-Marine 320 mm Art.No CB14ST

n.4 Pince de serrage pour boules 25 mm Art.No CP45EVO

n.2 Pince de serrage pour boules 25 mm Art.No CP65EVO

n.2 Bras flotteur fibre de carbone 60 mm avec rotule 25 mm long 25 cm flottabilité 360 g Art.No 60CA25

n.2 Bras en Fibre de Carbone à Dégagement Rapide Double Boule 25 mm Long 24 cm Art.No 30CA24QR

n.2 Plastic carbon terminaison ys avec boule 25 mm Art.No YSPC01

n.2 Bouton filetage 1/4 pour caméra Art.No PM1413

n.2 Bouton filetage m8

SEA AND SEA FLASH SOUS-MARIN YS-D3 DUO

The YS-D3 DUO is a high-specification underwater strobe with three shooting modes: DS-TTL, RC mode, and manual.

The YS-D3 DUO delivers even and uniform light distribution with a large light output of GN33.

Custom settings allow the strobe to be used with high precision with a variety of cameras and shooting styles.

Shooting Mode

The mode switch can be used to switch between "DS-TTL", "RC mode", and "Manual". It is conveniently identifiable by color.

Highly accurate DS-TTL dimming

DS-TTL dimming accuracy has been greatly improved by adopting a newly designed light receiving sensor.

By applying detailed custom settings, it can be used with high accuracy with a wide variety of cameras of multiple brands.

*When shooting TTL with a camera of a brand other than OM SYSTEM (OLYMPUS), select DS-TTL as the shooting mode.

*Pre-custom settings must be made for each camera in advance when shooting with DS-TTL.

Highly accurate DS-TTL dimming

The "RC System" is a flash system for OM SYSTEM digital cameras, and the YS-D3 DUO was developed in collaboration with OM Digital Solutions to incorporate the RC mode.

RC mode is a light control mode in which the camera automatically controls the flash output based on the brightness through the lens. The YS-D3 DUO is equipped with a more precise "RC mode" that was developed based on system information officially provided by OM Digital Solutions. The YS-D3 DUO is equipped with a more precise "RC mode" developed based on the system information officially provided by OM Digital Solutions.

*Since the strobe is system-linked to the camera, flash output compensation can be adjusted not only on the strobe side but also on the camera side while shooting in RC mode.

*Setting the camera to RC mode can prolong (save) the camera's battery life.

Manual mode has 11 steps

In manual mode, light intensity can be adjusted in 11 steps. The settings are (GN: 1 / 1.4 / 2 / 2.8 / 4 / 5.6 / 8 / 11 / 16 / 22 / 33). The value can be easily seen on the scale on the light intensity adjustment dial. Compatible with digital cameras that do not have a pre-flash function.

*Only manual flash is available, but if your camera housing is equipped with a strobe connector/converter connector, you can also use a sync cord to connect the strobe.

Customize

The YS-D3 DUO can be set up with high precision to accommodate a variety of shooting styles with different cameras by making custom settings. Refer to the table for settings according to the shooting mode used and the method of synchronizing the camera and strobe.

Shooting in RC mode

When shooting in RC mode with an OM SYSTEMS (OLYMPUS) camera, no custom settings are required. Select "RC mode shooting" in the flash mode setting on the camera side; YS-D3 DUO should be set to "RC" for shooting mode.

*For details on "RC mode shooting," please refer to the user's manual of the camera to be used.

Adjust beam angle with diffuser

The beam angle is 80°×105° without the diffuser and 100°×110° with the included diffuser for soft lighting.

When the optional dome diffuser is attached, the beam angle increases to 150°×170°. The dome diffuser is effective when using a fisheye lens or when lighting with soft light (guide number is reduced by approximately -1.5 EV).
