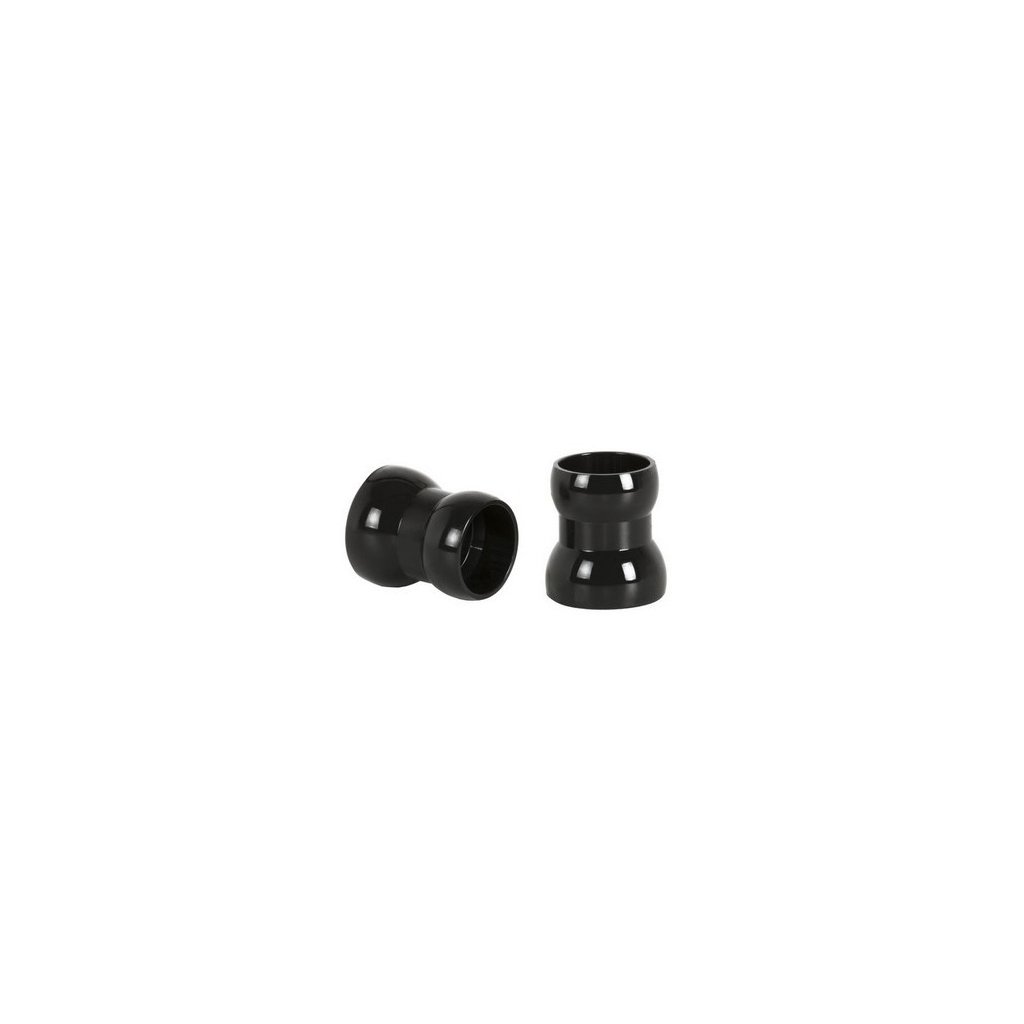

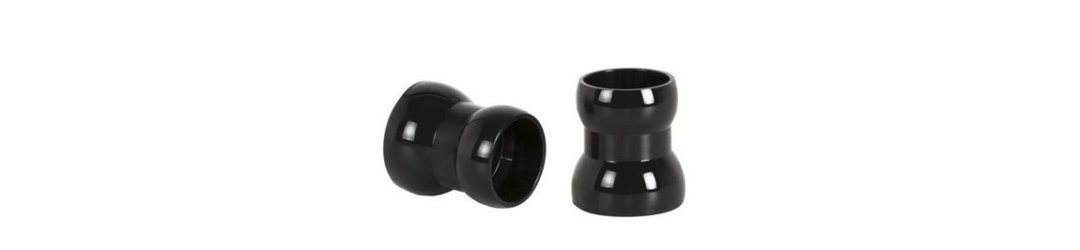

3/4" Segment - Single Module (1 piece)

The base module of the Flex-Arm 3/4" system allows for custom configurations, offering maximum flexibility and hold in any condition. The arm can be easily lengthened or shortened by adding or removing individual segments, making the system perfectly adaptable over time.

Technical Specifications

• • Diameter: 3/4"
• • Material: High-strength technical polymer, resistant to marine corrosion.
• • Coupling system: Pressure-fit (Locking ball-and-socket).

Assembly and Disassembly Guide

The Flex-Arm system is designed to be modular and intuitive:

• Assembly: Can be done manually with firm pressure between male/female balls. Alternatively, use our 3/4" Pliers for quick coupling and optimal finish protection.
• Base Insertion (M8/M6 threads): Place the base on a flat surface, keep the tube vertical, and push firmly downwards until it clicks.
• Terminal Insertion: Direct pressure insertion, keeping the axis aligned between the balls.
• Disassembly: Grip the component, rotate until it stops, and force slightly: the module will detach cleanly.
• 60009bk Joint: Essential only when you need to reverse or adapt the connection to join threaded components (e.g., Threaded Base → Tube → 60009bk Joint → Threaded Base).
