Art.No.ST201.44

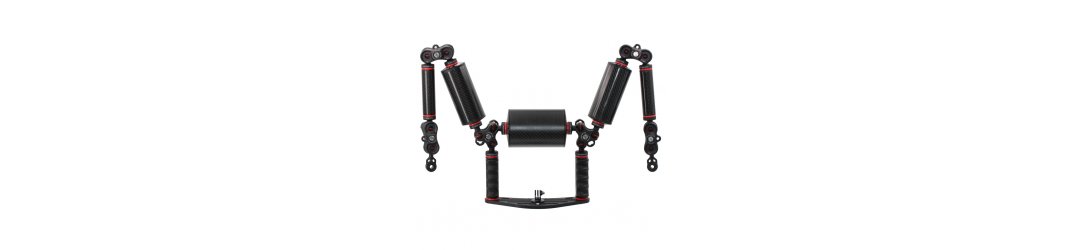

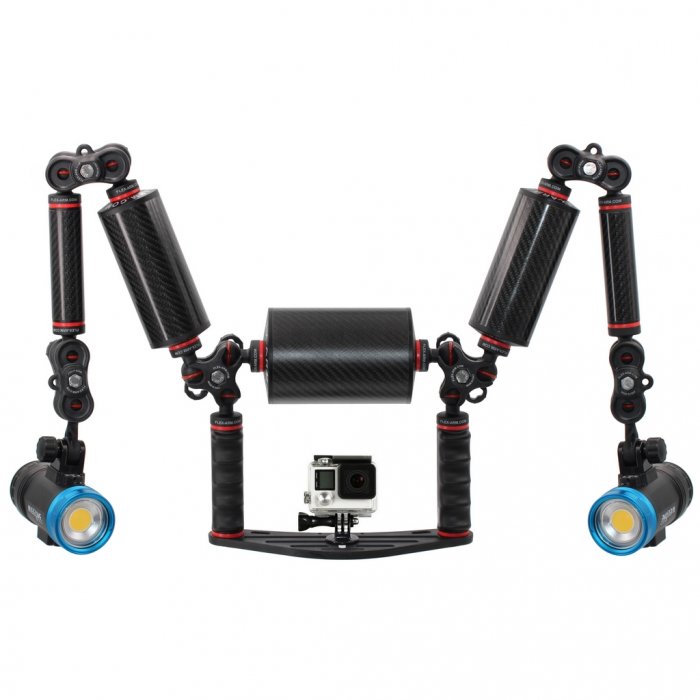

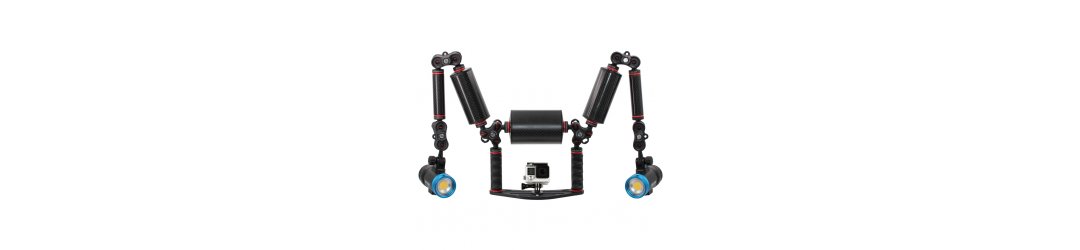

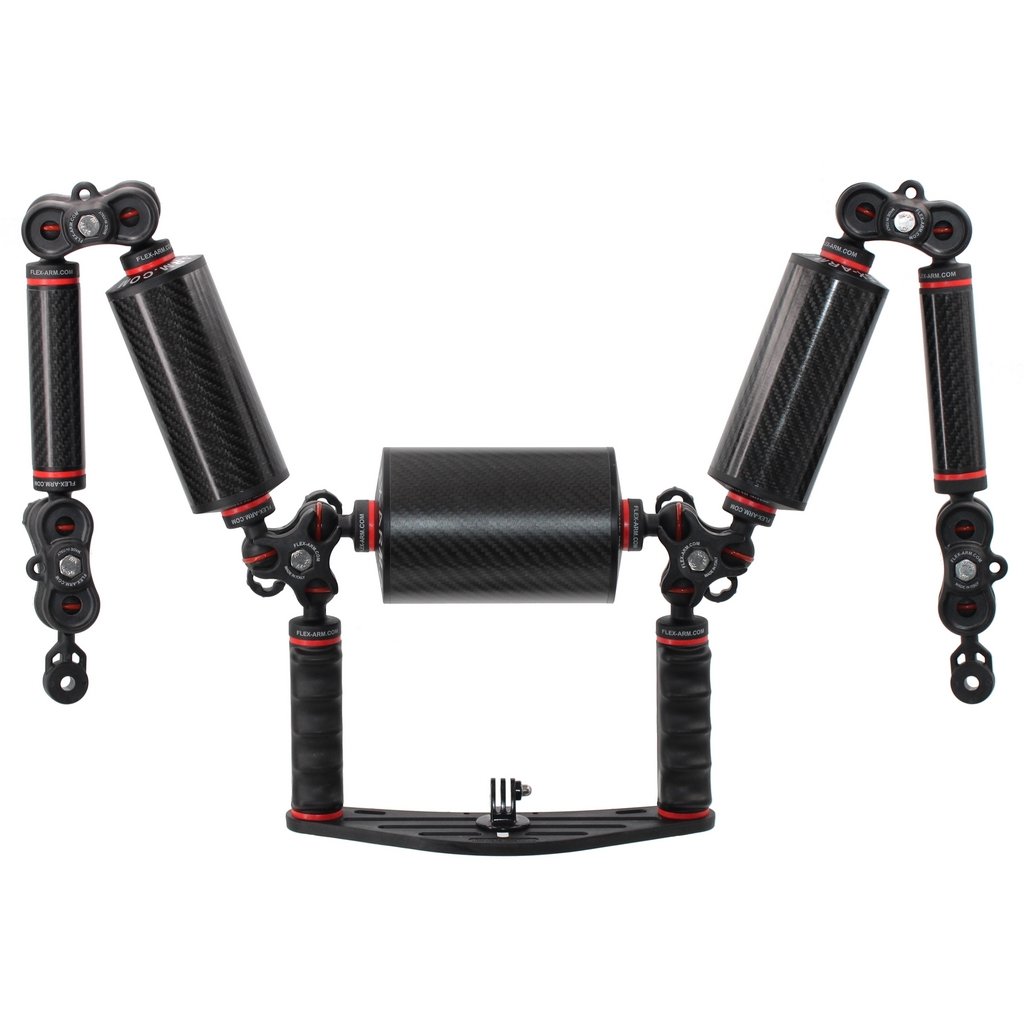

Underwater Camera Tray With Carbon Fiber Float Arm Set Ys-Mount

Underwater action camera tray

Double handles  with with 1-inch ball joint 25 mm

Carbon fiber arm 30 mm with double 1-inch ball length 18 cm buoyancy 0 g

Carbon fiber arm 60 mm with double 1-inch ball length 20 cm buoyancy +250 g

Carbon fiber arm 90 mm with double 1-inch ball length 20 cm buoyancy +800 g

Plastic carbon ys-mount to 1-inch ball

Action camera adapter for gopro®, sj4000 cam®, dazzne®,nilox®, eyecam ®

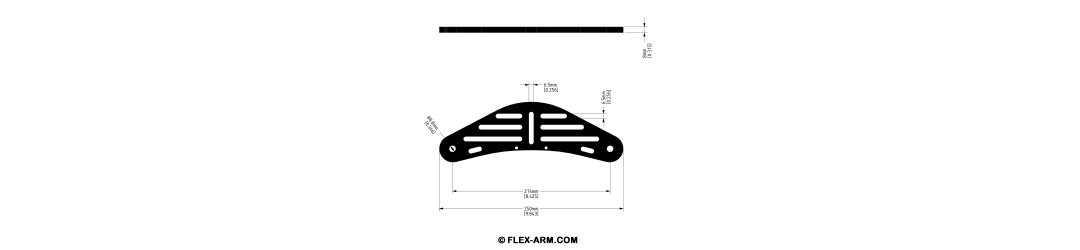

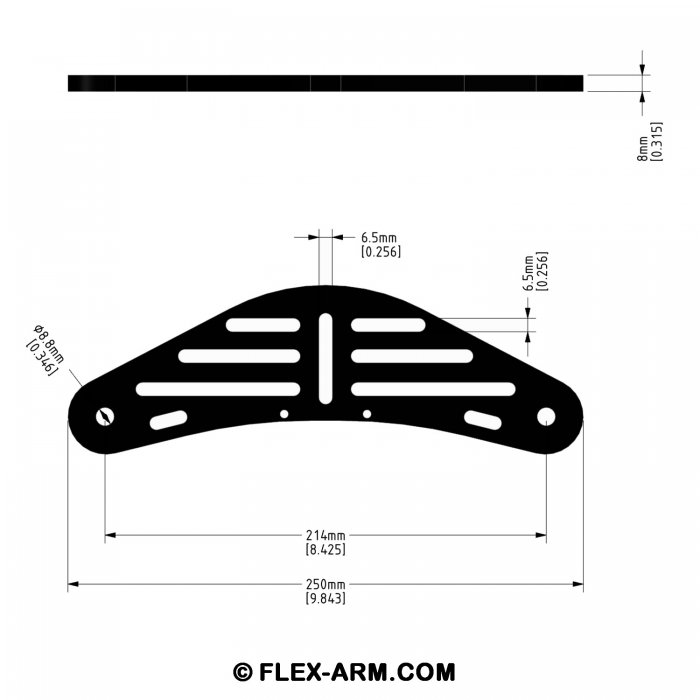

Dimensions: 260 x 60 x h 8 mm

Material: technopolymer

Plastic threaded knobs 1/4-20 and m8 included

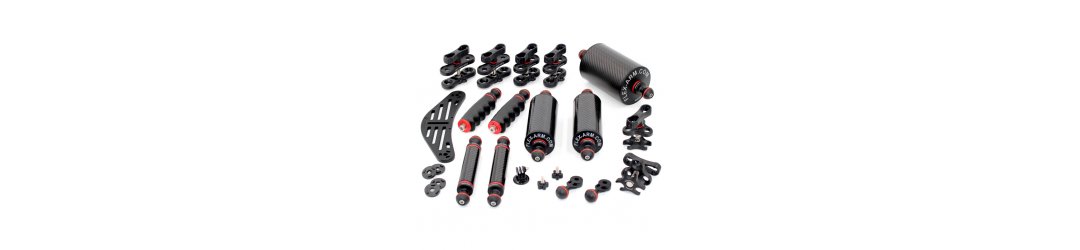

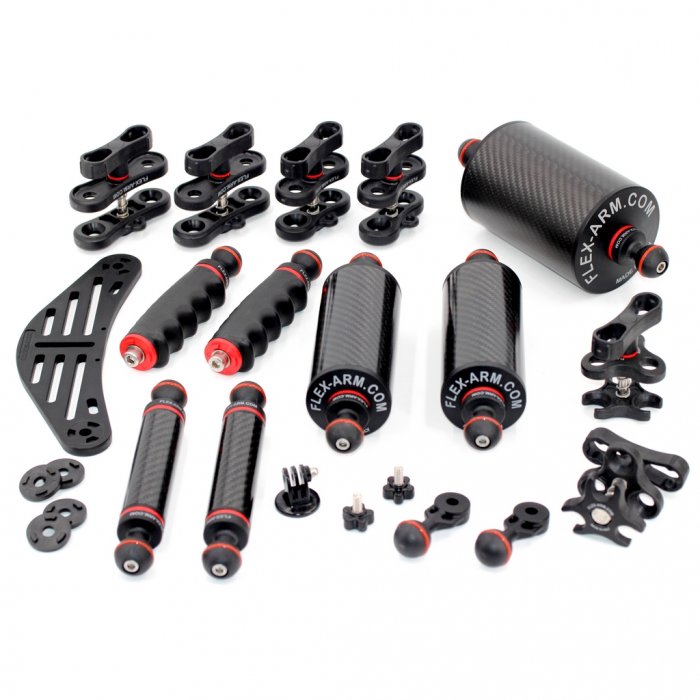

Composition

N.1 Underwater camera camera tray Art.no.st201.02

N.2 Handle with ball joint 2,5cm (1") m8 female thread length 12 cm Art.no 606.m8

N.2 Carbon fiber arm 30 mm with double 1-inch ball length 18 cm buoyancy 0 g Art.no 30ca18s

N.2 Carbon fiber arm 60 mm with double 1-inch ball length 20 cm buoyancy +250 g Art.no 60ca20

N.1 Carbon fiber arm 90 mm with double 1-inch ball length 20 cm buoyancy +800 g Art.no 90ca20

N.2 1-inch triple ball clamp black Art.no 605t3bk

N.4 Clamp for ball joint arm systems with 25mm (1 inch) ball - black Art.no.605.c1bk

N.1 Action camera mount Art.no.600.20bk

N.2 1/4-20 thread knobs camera screw Art.no.pm14-13

N.2 M8 thread knobs Art.no. Pm08-18
