Art.No.ST202S220

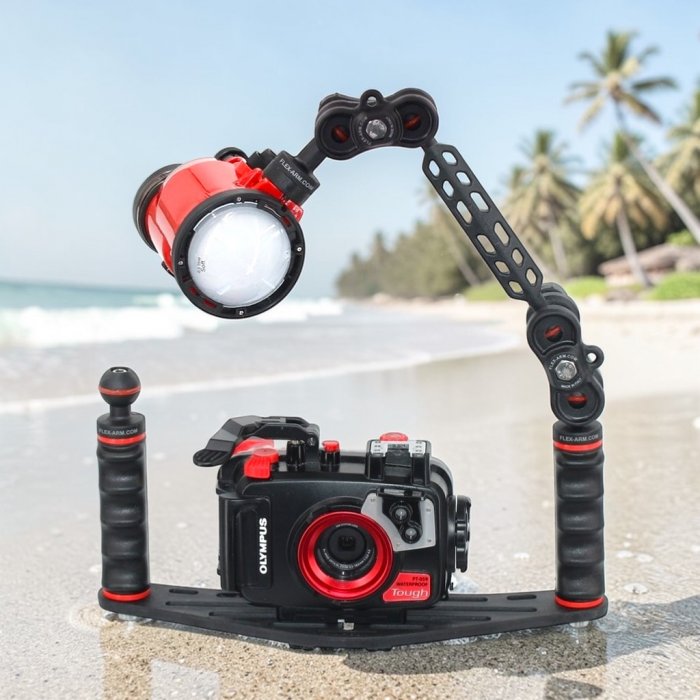

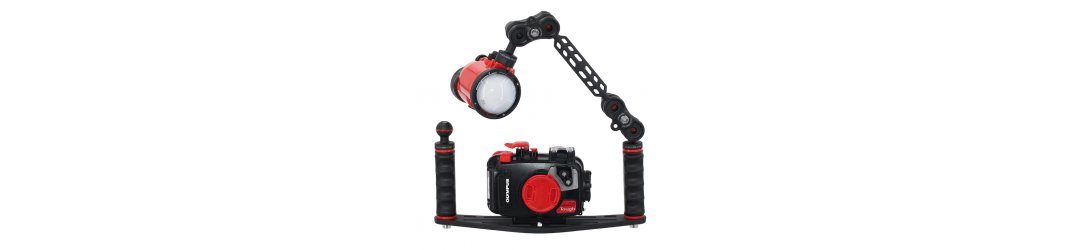

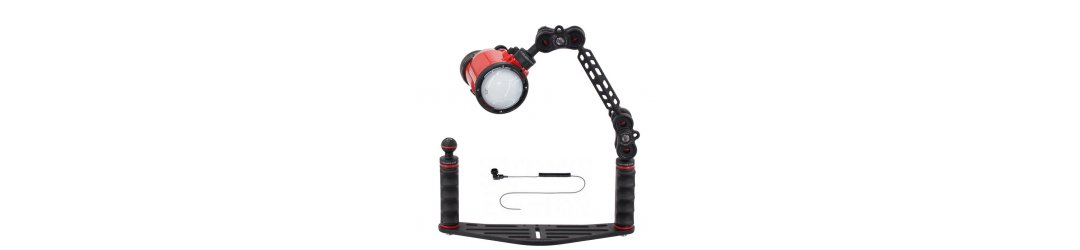

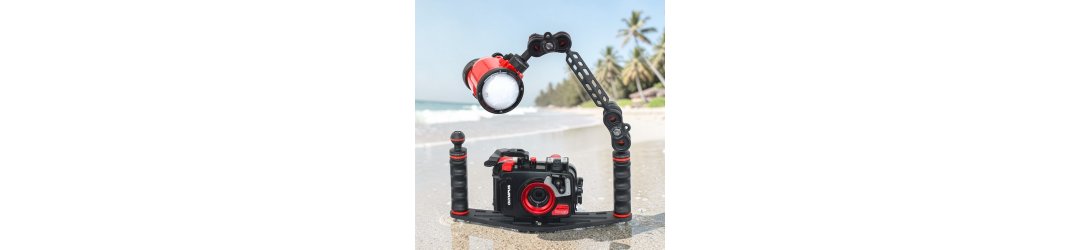

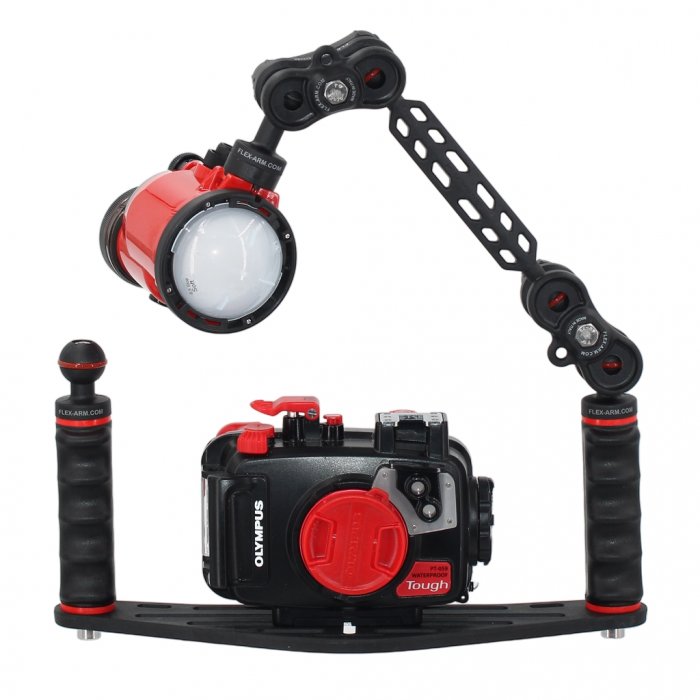

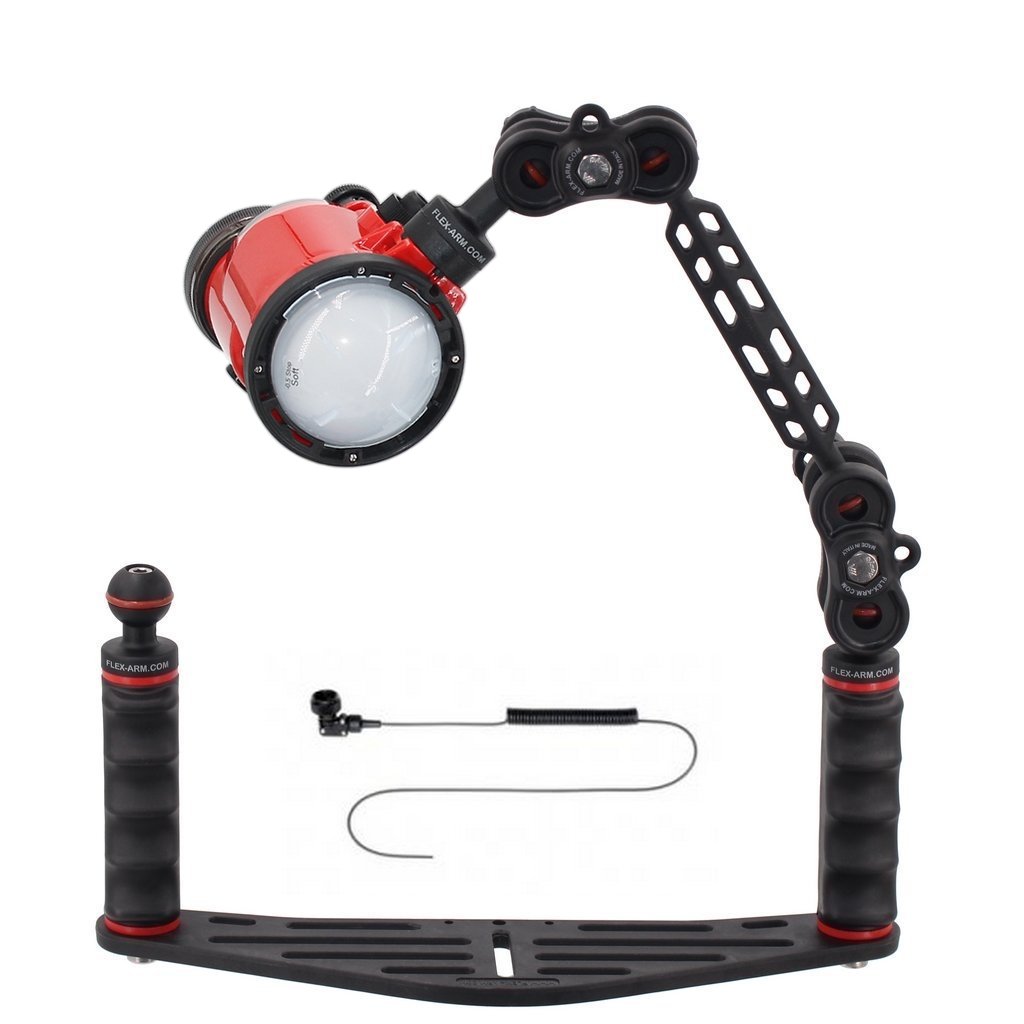

Underwater Tray for Camera Housing Package with Inon S220 Underwater Strobe

Underwater camera housing tray and handles with 1-inch ball joint 25mm

B&j clamp for 1-inch ball

Plastic carbon arm leng 18 cm

Ball Mount Adapter for Inon Strobe

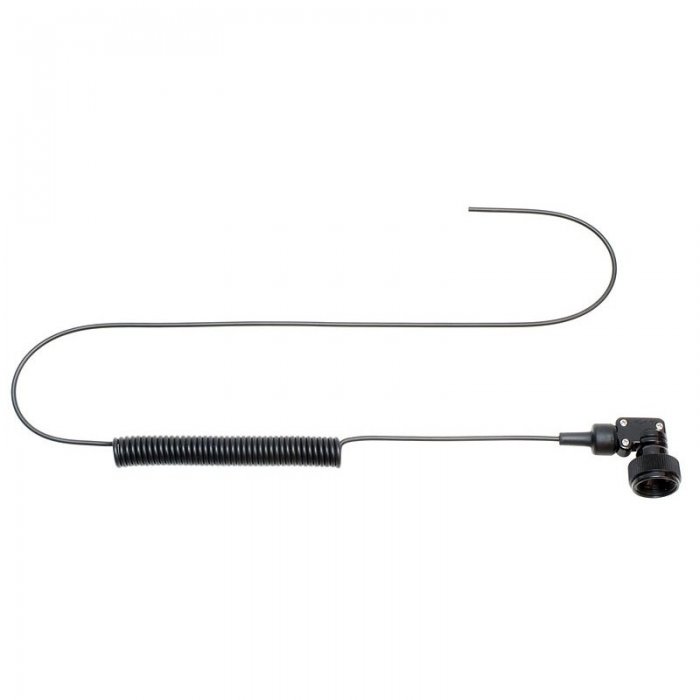

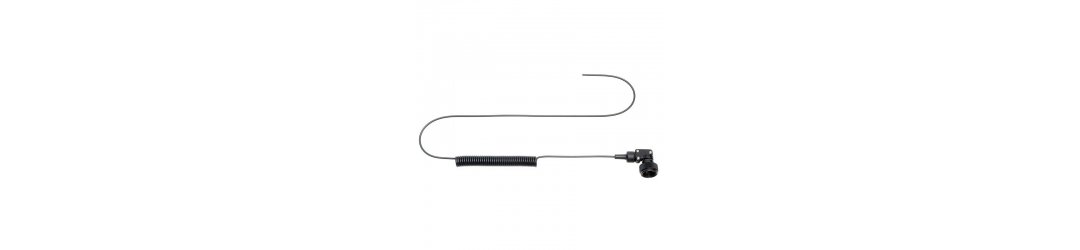

Inon Optical D Cable L Type L (68cm/27in)

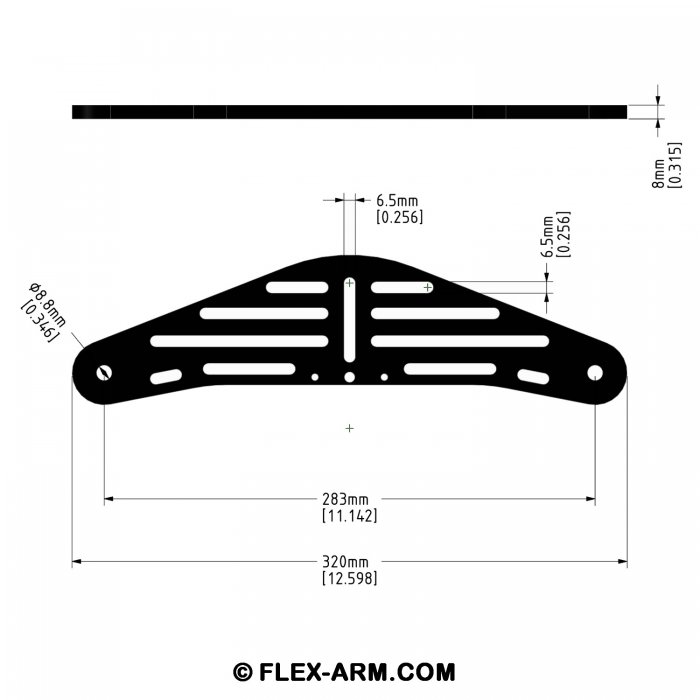

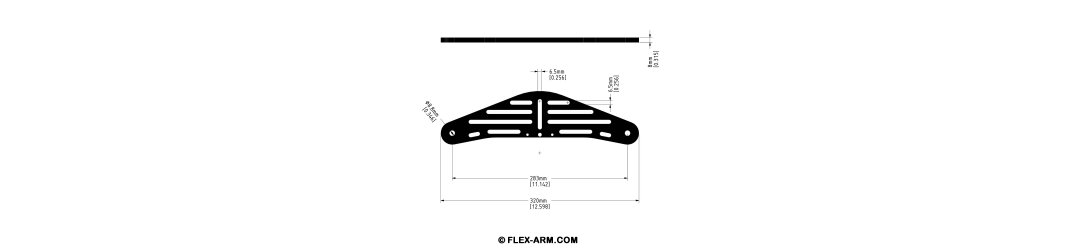

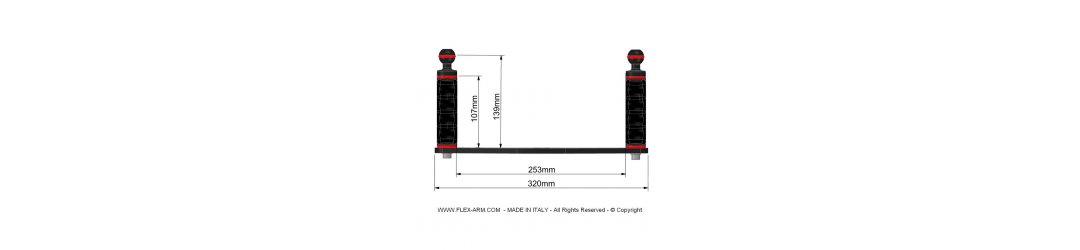

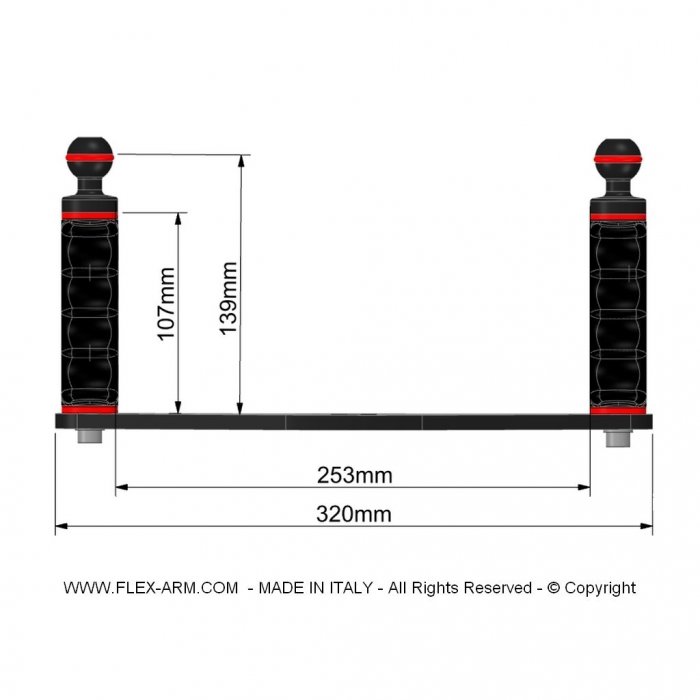

Dimensions: 320 x 75 x h 8 mm

Material: technopolymer

1/4-20 screws included

Composition

n.1- Underwater camera housing tray and handles with 1-inch ball joint 25mm Art.no. st202.04

n.1- Inon S220 Flash Subacqueo

n.1- Inon Optical D Cable L Type L (68cm/27in)

n.2- Clamp EVO45 for Ball Joint Arm Systems with 1-Inch Ball Art.no.CP45EVO

n.1- Plastic carbon arm with double 1-inch ball length 18 cm Art.no pc018

n.1- Ball Mount Adapter for Inon Strobe Art.no 60058bk

n.2- 1/4-20 camera screws included Art.no pm14-13

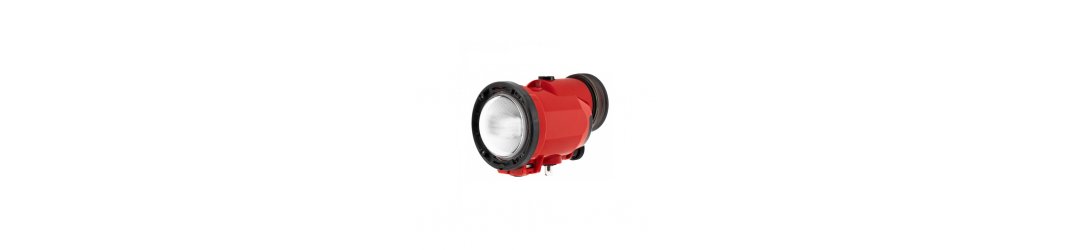

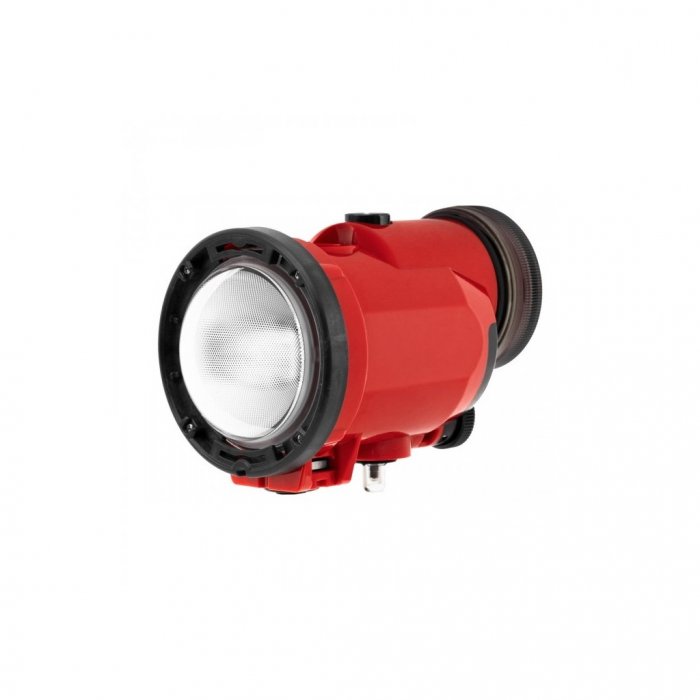

Inon S220 Underwater Strobe

INON S-220 is a very compact and powerful underwaterstrobe with a GN of 22, S-TTL, 12 steps manual flash mode, EV controller to fine-tune the S-TTL auto exposure and a wide beam. The S-220 strobe auto detects the pre-flash number. The S-220 operates on four AA batteries.

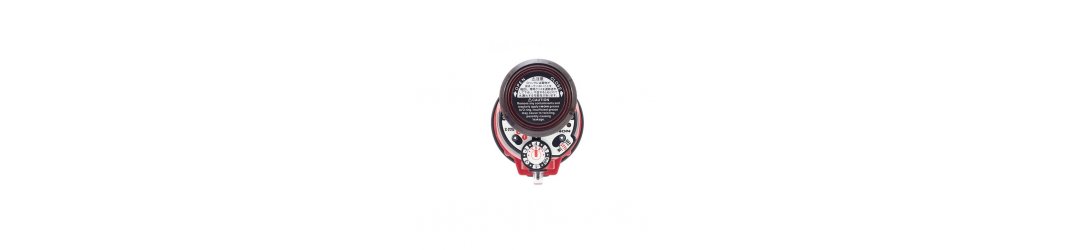

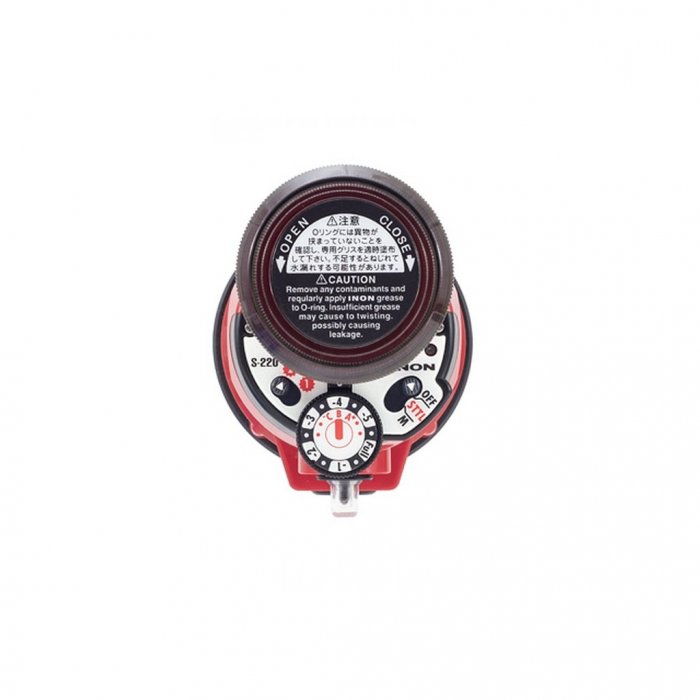

There is a large dial controller to easy operate your S-220 strobe. The display is also phosphorescent for better visability. Newely introduced is the double o-ring seal for the batterybox.

There is a variety bayonet mount filters to enhance your creativity

Key Features

- Compact body yet delivers GN22

- Equipped with a fly-eye dome lens enabling super wide underwater beam angle of horizontal 140°×vertical 100°

- Reliable and proven "S-TTL Auto" and 12-step "Manual Flash

- Large wheel dial for dramatically improved operability.

- A phosphorescent panel for easy readability

- Double O-rings greatly reduce the risk of flooding

- Front positioned base contributes more flexible lighting

- Operates on four AA batteries, readily available and reasonably priced

- Compatible with various strobe dome filters

Technical Specifications

Dimensions: W 64 x H 83 x D 106

Recycle time: 1.5 sec at full power

Manual power settings: 12

Colour temp at full power: 5500K

Colour temp with diffuser: 5400K

Coverage: 105° x 95°

Coverage with diffuser: 110° Circular

Weight in Air: 295g (inc. batteries)

Weight in Water: 69g (inc. batteries)

Guide No on land: 20

Guide No. In water: 11

Rated to: 100mtr

Power Supply: 4 x AA Cells
