Art.No.ST202.64-D3

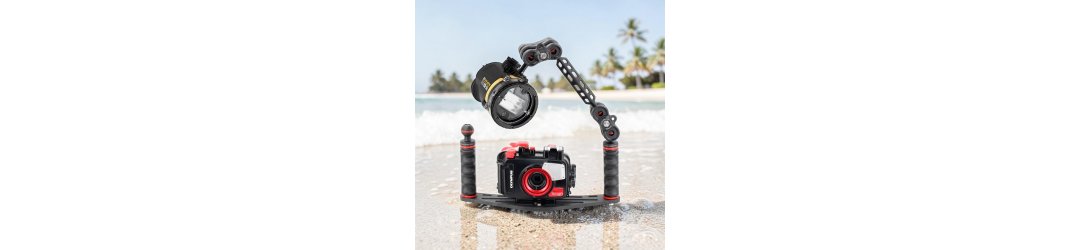

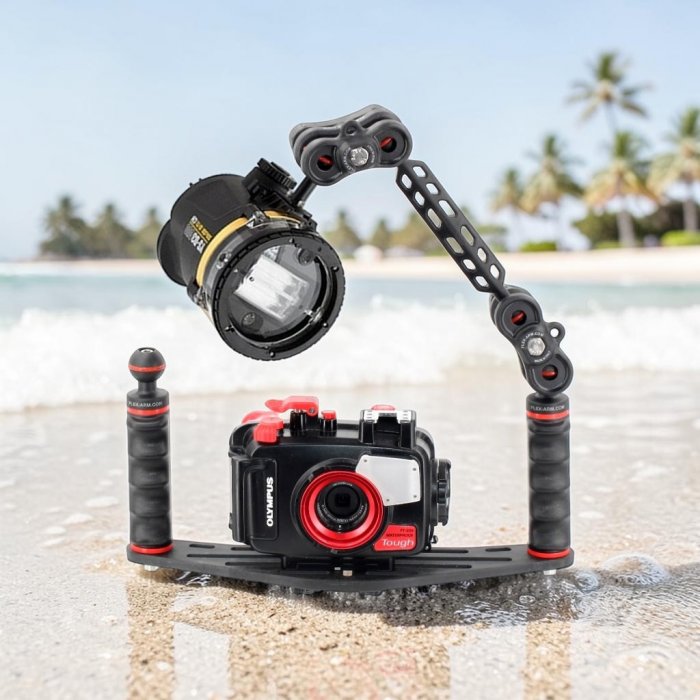

Underwater Tray for Camera Housing Package with Sea and Sea YS-D3 Strobe

Underwater camera housing tray and handles with 1-inch ball joint 25mm

B&j clamp for 1-inch ball

Plastic carbon arm leng 18 cm

Plastic carbon ys-mount to 1-inch ball

Sea and Sea Ys-D3 underwater strobe

Sea & Sea fiber-optic cable II M/2 connectors – universal

Dimensions: 320 x 75 x h 8 mm

Material: technopolymer

1/4-20 screws included

Composition

n.1- Underwater camera housing  tray and handles with 1-inch ball joint 25mm Art.no. st202.04

n.1- Sea and Sea YS-D3 underwater strobe

n.1- Sea and Sea - fiber-optic cable ii m/2 connectors – universal Art.no 50128

n.2- Clamp for 1-inch ball joint with 25mm Art.no.Cp45Evo

n.1- Plastic carbon arm with double 1-inch ball length 12 cm Art.no pc018

n.1- Plastic carbon ys-mount to 1-inch ball Art.no yspc01

n.2- 1/4-20 camera screws included Art.no pm14-13

Sea and Sea Ys-D3

[Guide Number (ISO 100/m) (land)] : 33, 28 (with Diffuser attached)

[Beam Angle] : 105°x80°  (without Diffuser), 110°x100°(with Diffuser)

[Batteries] : 4xAA A: 6V Ni-MH: 4.8V

[Number of Flashes *1] : A: 140 Ni-MH: 220

[Recycle time (full) *2] : A: 3.5 sec. Ni-MH: 1.7 sec.

[Color temperature] : 5800K

[Color temperature w/diffuser] : 5500K

[Depth rating] : 100m  / 330ft

[Dimensions (WxHxD)] : 92x111x147mm / 3.6 x 4.4 x 5.8 inches (excluding ball base)

[Weight] : 610g / 21.5oz (w/o batteries) (excluding ball base)

[Underwater weight] :  Approx.-20g / -0.7oz (incl. batteries ball base)

[Others]

Exposure control: DS-TTL II,  Slave TTL, Light level control dial (GN): 1 / 1.4 / 2 / 2.8 /4 / 5.6 /8 / 11 / 16 / 22 / 33 (11 steps)

DS-TTL II function

Slave function

Auto power OFF function 30min

Sync cord: 5-pin Sync cord/N, Fiber-Optic Cable

Over-pressure relief valve

LED target light (output is adjustable in 2 steps)

Audible charge signal

*1 Number of flashes and recycle time depends on the battery brand, temperature and frequency of use.

*2 Number of flashes and recycle time of Ni-MH batteries were tested on 2500 mAh batteries.
