Art.No.ST202.62

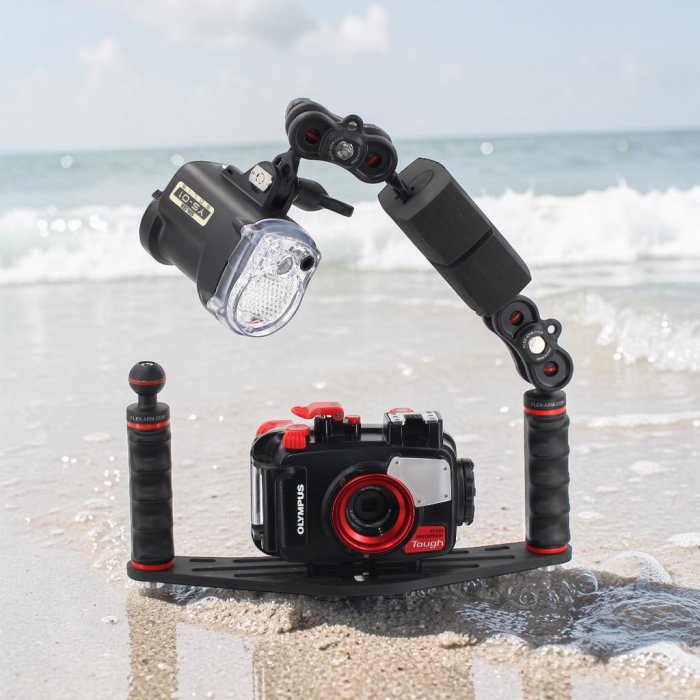

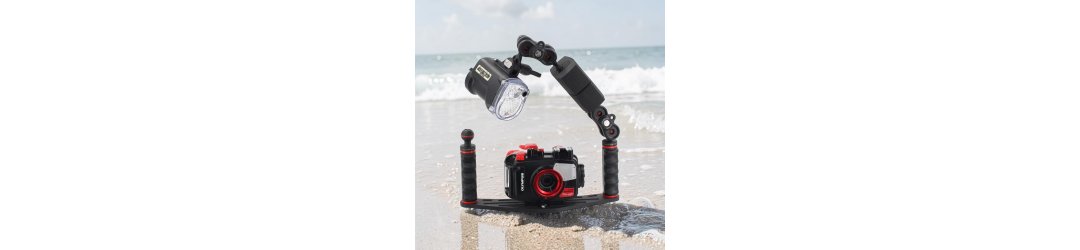

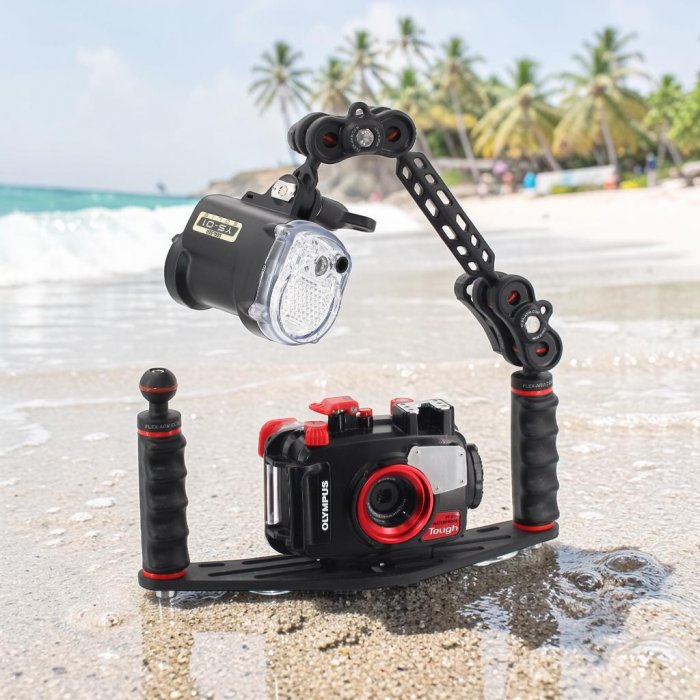

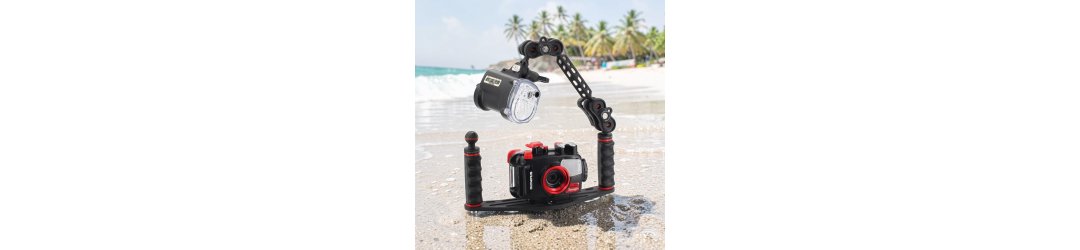

Underwater Tray for Camera Housing Package with Sea and Sea YS-01 Strobe

Underwater camera housing tray and handles with 1-inch ball joint 25mm

B&j clamp for 1-inch ball

Plastic carbon arm leng 18 cm

Plastic carbon ys-mount to 1-inch ball

Sea and Sea ys-01 underwater strobe

Sea and Sea fiber-optic cable ii m/2 connectors – universal

Dimensions: 320 x 75 x h 8 mm

Material: technopolymer

1/4-20 screws included

Composition

n.1- Underwater camera housing tray and handles with 1-inch ball joint 25mm Art.no. st202.04

n.1- Sea & sea ys-01 underwater strobe

n.1- Sea & sea - fiber-optic cable ii m/2 connectors – universal Art.no 50128

n.2- Clamp for 1-inch ball joint with 25mm Art.no.605.c1bk

n.1- Plastic carbon arm with double 1-inch ball length 18 cm Art.no pc018

n.1- Plastic carbon ys-mount to 1-inch ball Art.no yspc01

n.2- 1/4-20 camera screws included Art.no pm14-13

Sea and Sea Ys-01 Underwater Strobe

Multiple features condensedinto a compact design

Circular beam angle of 100°x100° and guide number of up to 20. the ys-01 is a new compact-type slave strobe that can be used for all applications from wide-angle to macro photography.

You can switch between ds-ttl (digital slave ttl) and a ten-level manual control function, to enable fine adjustment of the light level according to the photographer's intentions. you can also set up a lighting system that uses two strobes in ds-ttl mode.

Power comes from four aa batteries for a powerful and long-lasting strobe. you can enjoy taking pictures all day long without having to recharge the batteries. the recycle time takes about two seconds with nickel-metal hydride batteries (2700 mah) for stress-free continuous shooting. the ys-01 is furnished with a high-luminance white led target light (1w) indicating the optical axis of the strobe attached to its front face that is effective for night diving.

You can fully exercise your creativity with the ys-01, which can be used as a primary strobe or secondary strobe in a wide range of applications, from compact digital cameras to digital slr cameras.

Specifications:

Guide number (iso 100/m) (land) 20

Beam angle 100°x 100° (with diffuser 110°x110°)

Batteries 4xaa a: 6v ni-mh: 4.8v

Number of flashes a: 230 ni-mh: 330

Recycle time (full) a: 2.5 sec. ni-mh: 1.9 sec.

Color temperature 5600k

Color temperature w/diffuser 5250k

Depth rating 75m / 250ft

Dimensions (wxhxd) 68x108x129mm / 2.7x4.3x5.2inch

Weight: 450g / 15.8oz (w/o batteries) * attached a fixing bolt to the strobe.

Underwater weight : approx.+10g / -0.4oz(w/ batteries)

Exposure control: ds-ttl, light level control dial (gn): 1 / 1.4 / 2 / 2.8 / 4 / 5.6 / 8 / 11 / 16 / 20 (10 steps)

Pre-flash control: equipped with pre-flash cancel mode

Ds-ttl function

Slave function

Auto power off function

Over-pressure relief valve

Led target light
