Art.No.ST202Q02RC

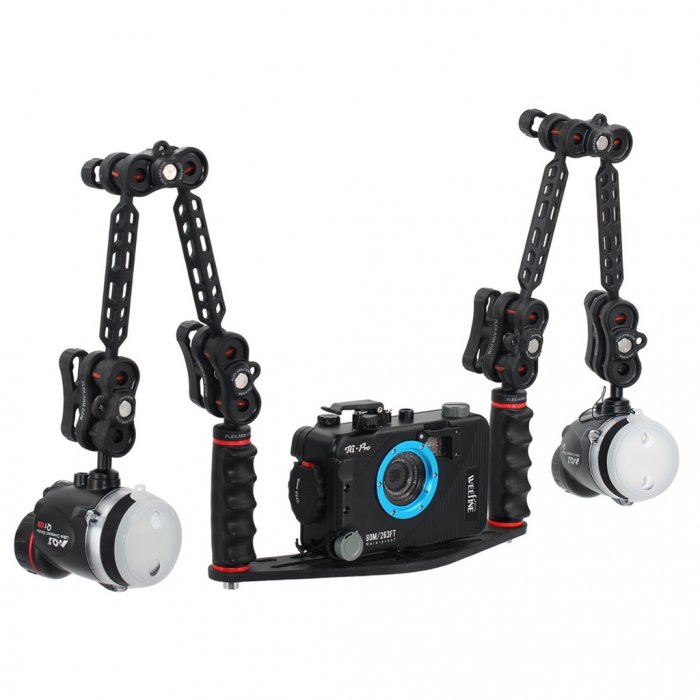

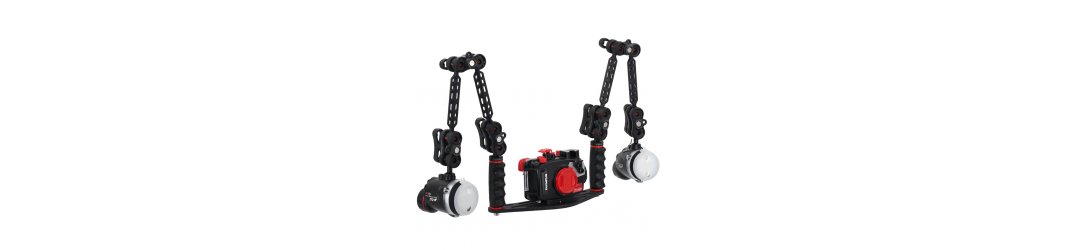

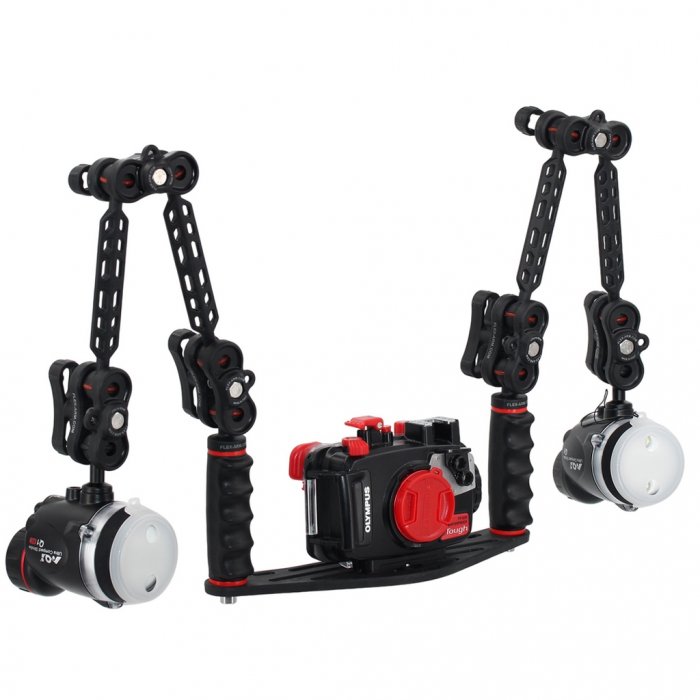

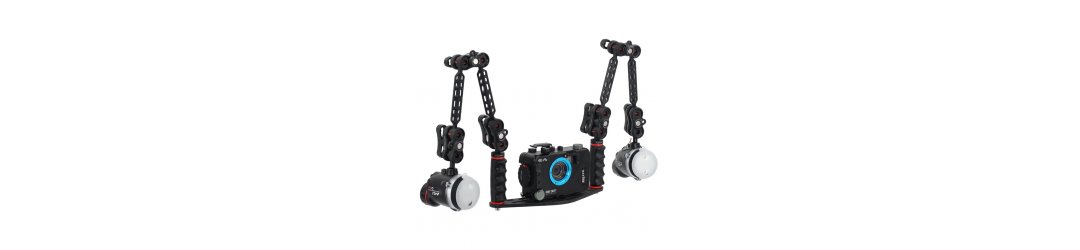

Underwater Tray for Camera Housing Package with AOI Ultra Compact Strobe Q1 RC

Underwater camera housing tray and handles with 1-inch ball joint 25mm

B&j clamp for 1-inch ball

Plastic carbon arm leng 18 cm

Plastic carbon ys-mount to 1-inch ball

AOI Ultra Compact Strobe Q1 RC

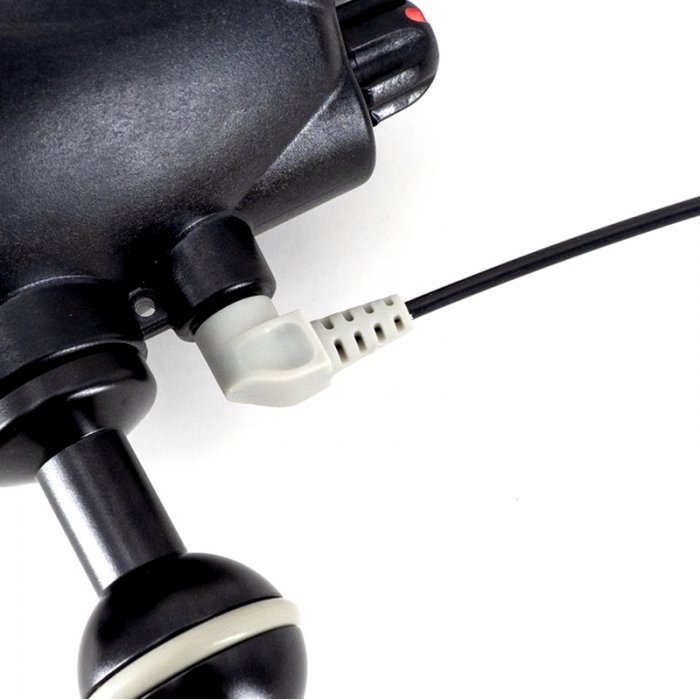

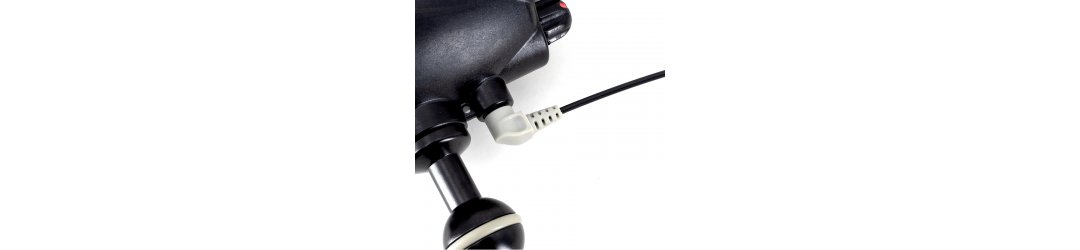

AOI fiber-optic cable M  connectors – universal

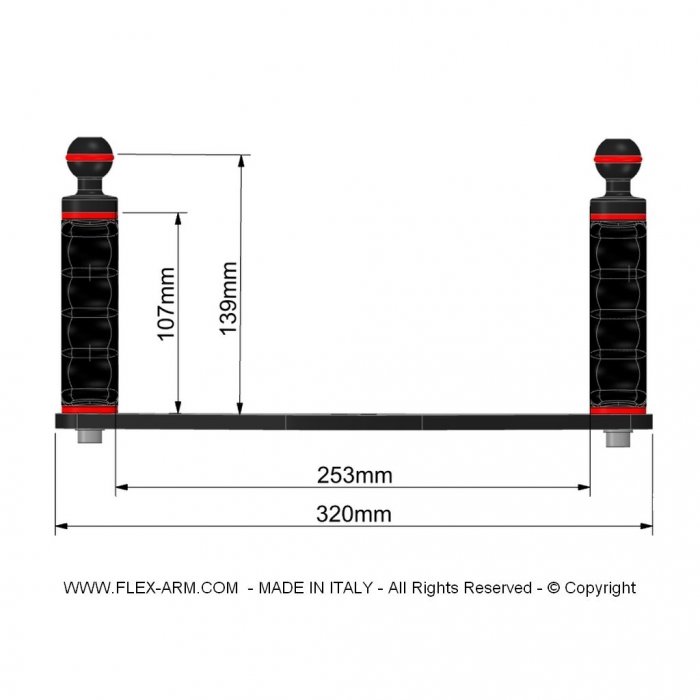

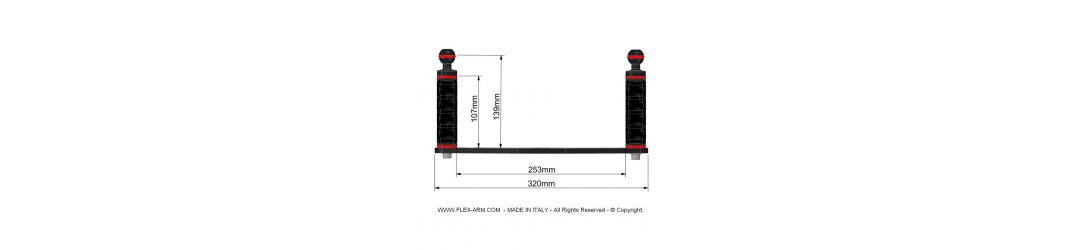

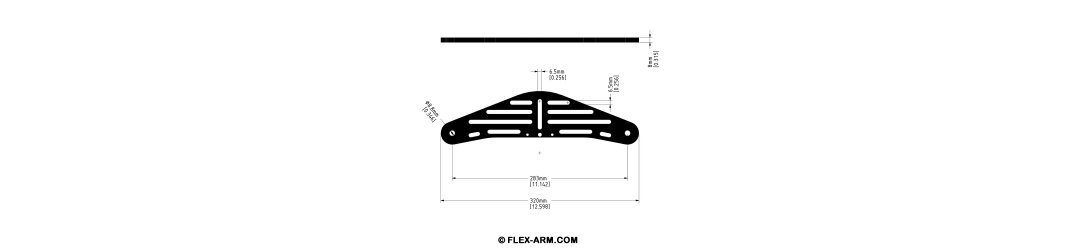

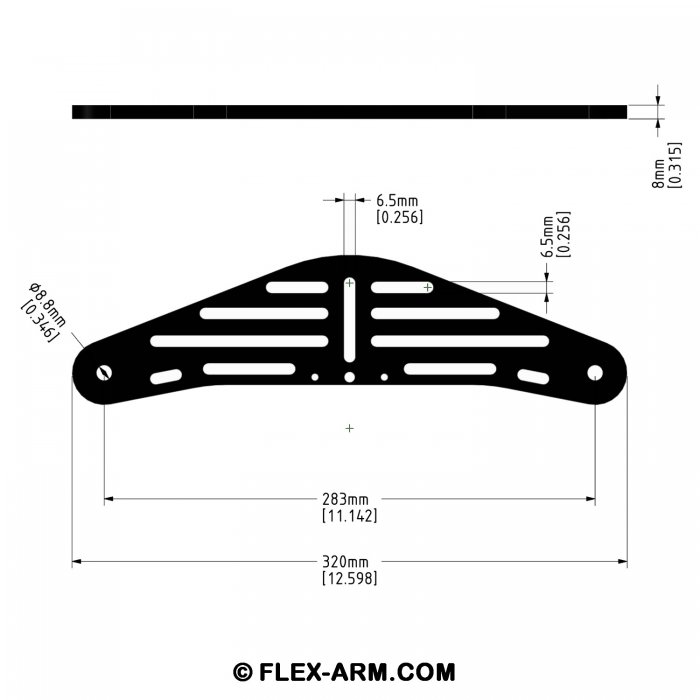

Dimensions: 320 x 75 x h 8 mm

Material: technopolymer

1/4-20 screws included

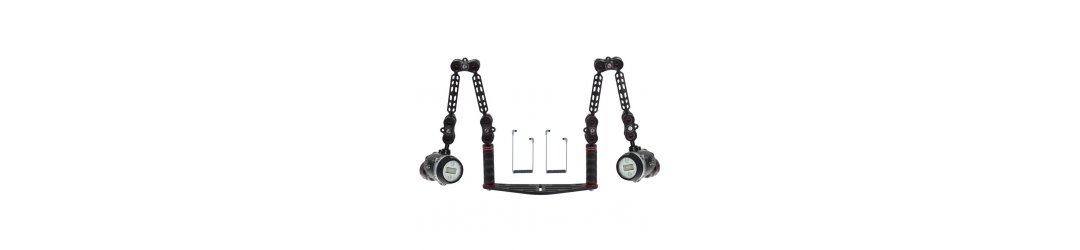

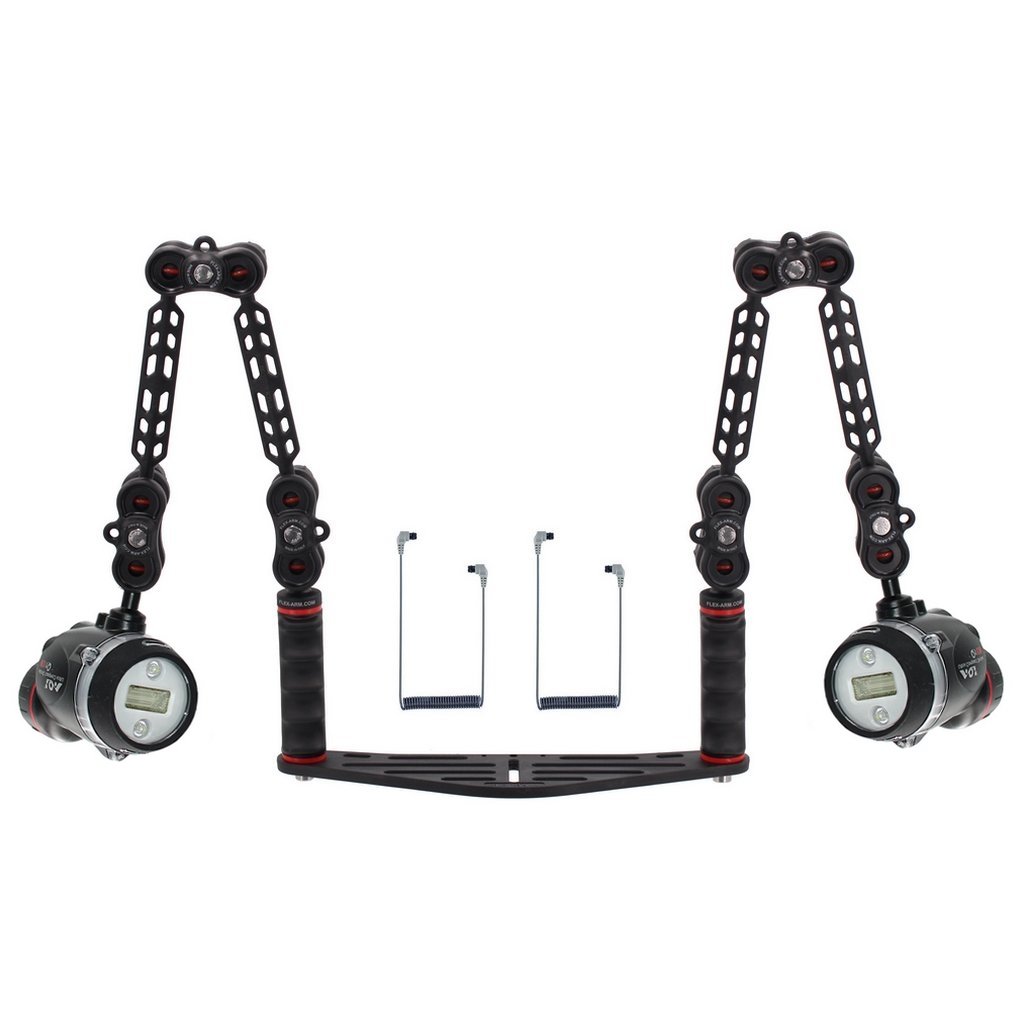

Composition

n.1- Underwater camera housing tray and handles with 1-inch ball joint 25mm Art.no. st202.04

n.2- AOI Ultra Compact Strobe Q1 RC

n.2- AOI fiber-optic cable M  connectors – universal

n.6- Clamp EVO45 for Ball Joint Arm Systems with 1-Inch Ball Art.no.CP45EVO

n.4- Plastic carbon arm with double 1-inch ball length 18 cm Art.no pc018

n.2- 1/4-20 camera screws included Art.no pm14-13

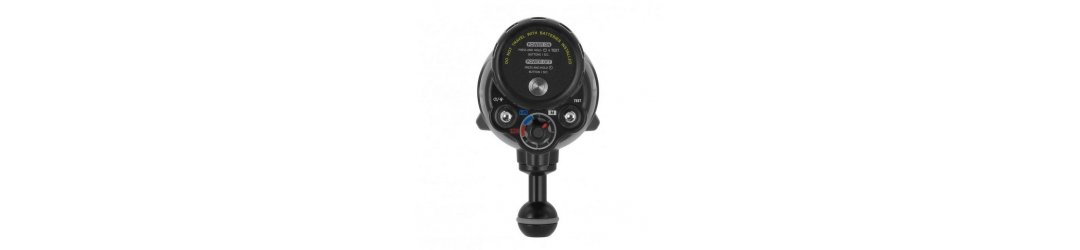

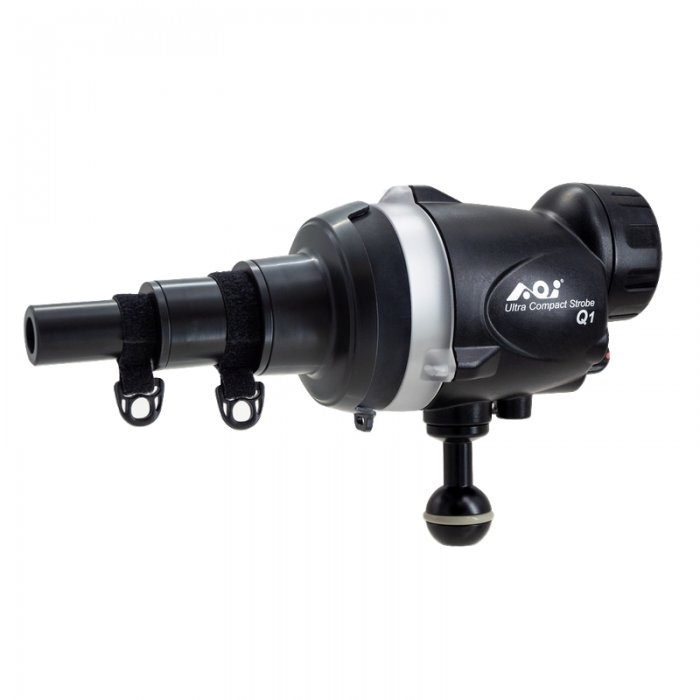

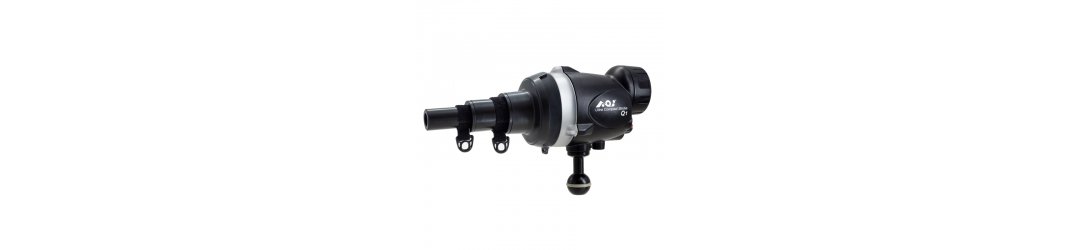

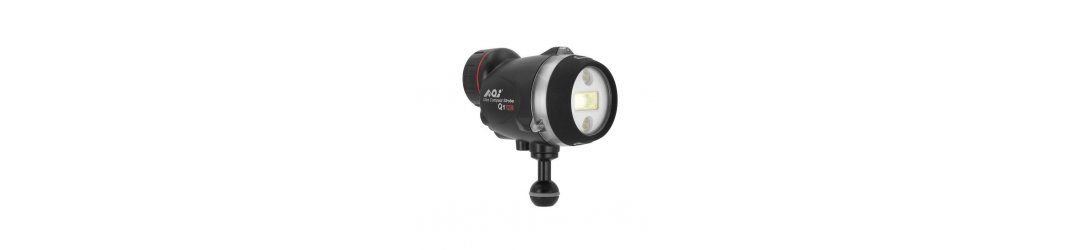

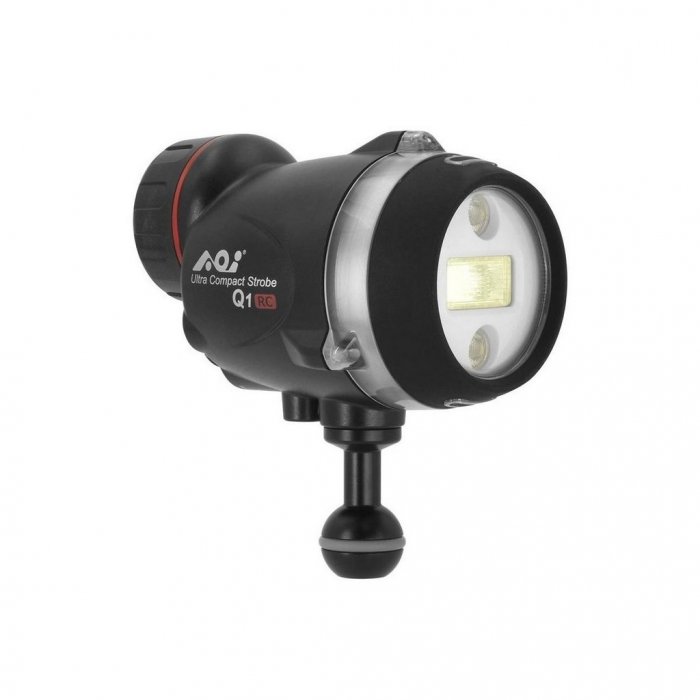

AOI Q1 RC Ultra Compact Underwater Strobe

This newest model of the Q1 strobe is now equipped with TTL and RC function! So this wanted ultra compact strobe model is now really indispensable! This strobe has a GuideNumber of 22 and a beam angle of 85.

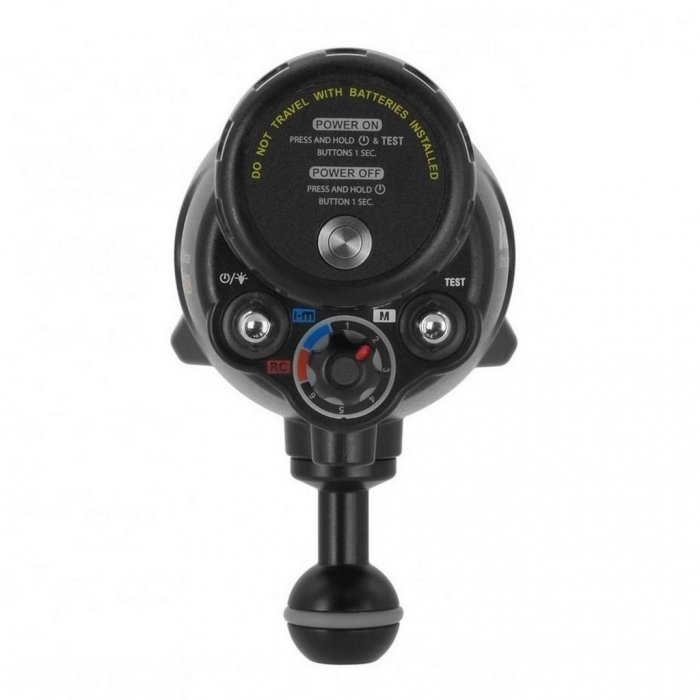

Also this UCS-Q1 RC strobe modell is kept easy to use with two push buttons and one dial switch. One button for on-off / modelling light and one test button. The dial switch is to choose the mode: RC , i-M or Manual.

Keeping the strobe to only manual function means that when used with an automatic compact camera, it is easy to obtain the desired the brightness. Just adjust the brightness of the strobe to match the exposure of the camera. The strobe has a very useable beam angle of 85 degrees with the diffuser on.

With the RC function you can use with selected Olympus cameras in selected underwater housings the TTL function.  The i-M mode is for macro photography. You also have to use this mode while using a snoot.

The left button activates the continuous light function, which has 3 power setting. The different power settings can be obtained by cycling through the button. The highest setting is at 700 lumens which is bright enough for macro shots or even as an underwater torchlight. The continuous light also works as a focus light, allowing for quicker focusing and determining the desired strobe position. The buttons and knobs are clearly labelled - making it easy to control, even with gloves on.

The battery compartment is secured with a screw-on cap that is sealed with two o-rings to prevent accidental flooding. Should the battery compartment flood, it does not affect the electronic compartment as the two are kept separate. The strobe is powered by two 18650 lithium batteries (not included), which offers a up to 1500 flashes on a single charge and provides consistent power delivery, even at low levels. The strobe is equipped with  stand-by (after 15 minutes) and auto power-off (after 2 hours) features to conserve power and increase the lifespan of the strobe.

Specifications AOI Q1RC:

Main Body Material: Polycarbonate + Glass Fiber

Depth Rating: 60 Meters / 200 Ft.

Guide Number: 22

Color Temperature: 5600K ( 5000K with diffuser)

Beam Angle: Horizontal- 85°, Vertical- 85° (with Diffuser)

Flash recharge time: 0.85 Second (Full Power)

Number of flashes: 1500 Full Flashes with 3100mAh Li-Ion Batteries x2

Led light:

Maximum Output: 700 Lumens

Color Temperature: 5600K

Beam Angle: 45°

Burn Time: 130 Minutes (Max. Brightness with 3100mAh Li-Ion Batteries x2)

Power source: 18650 Li-Ion Rechargeable Batterie x2

Dimensions: 125mm (L) X77mm (W) X131mm (H)

Weight;

Underwater : Approx. 90g (with batteries)

On Land : Approx. 550g (with batteries)

Included with this strobe ;

Diffuser, Spare O-Rings, O-Ring Remover, Silicon Grease, Battery Storage Case, Control Knob Extension

Batteries and a charger are NOT included !
